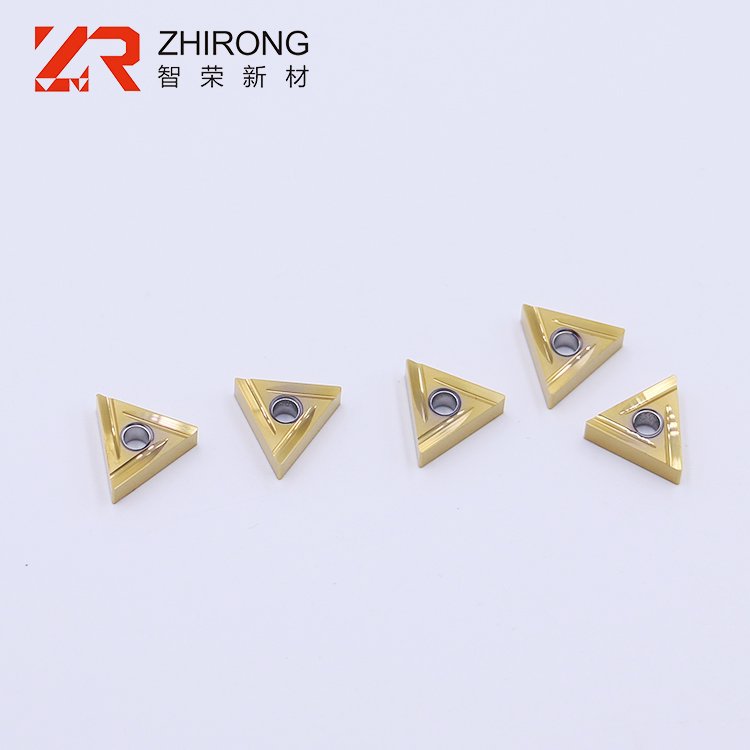

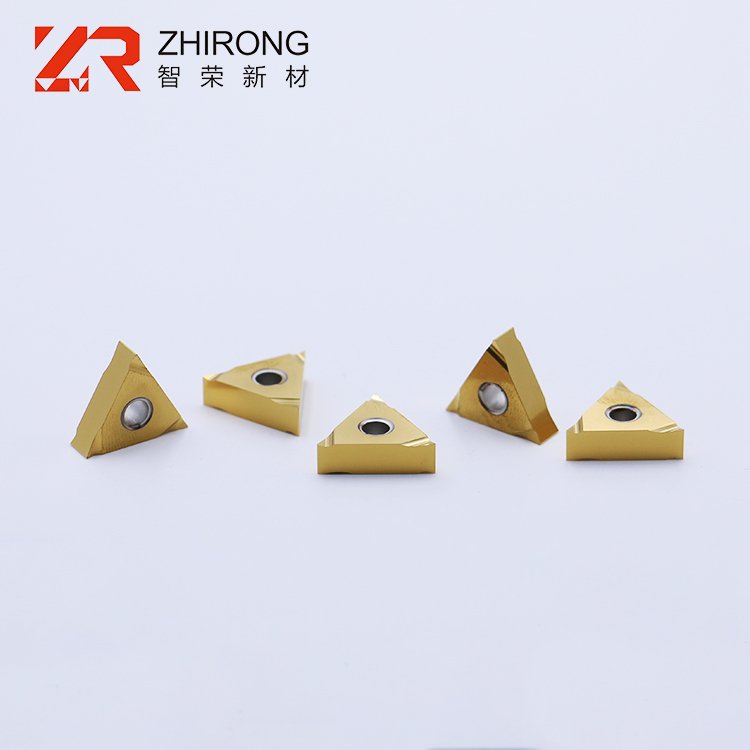

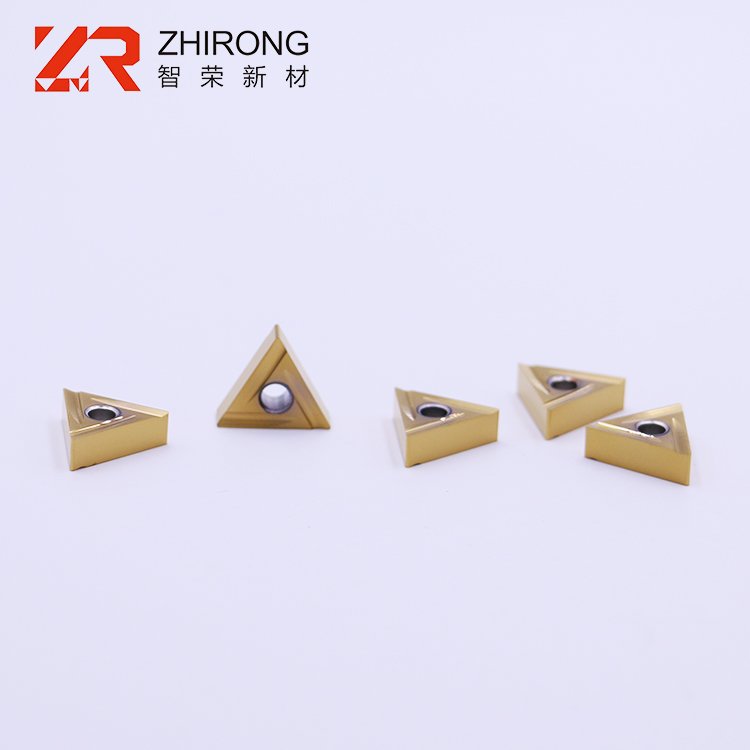

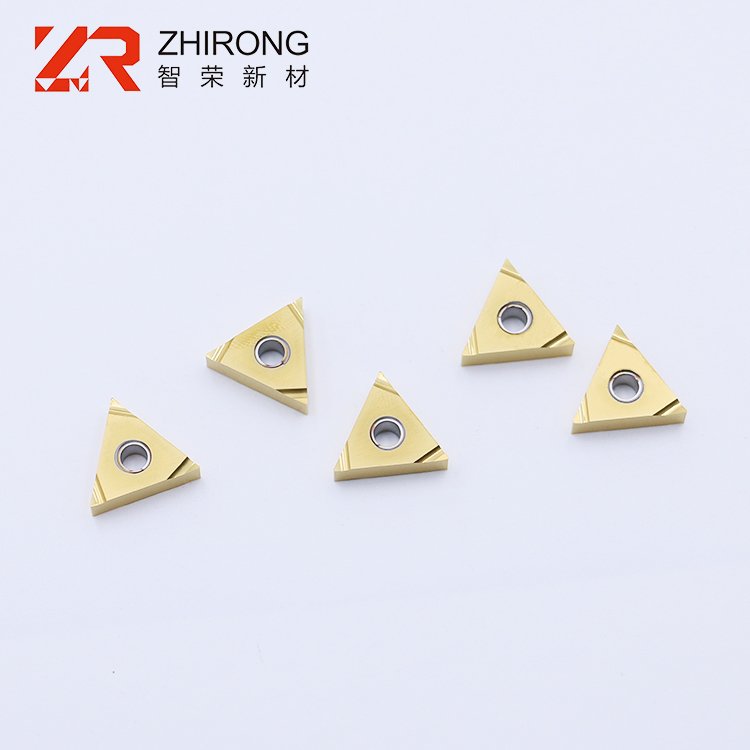

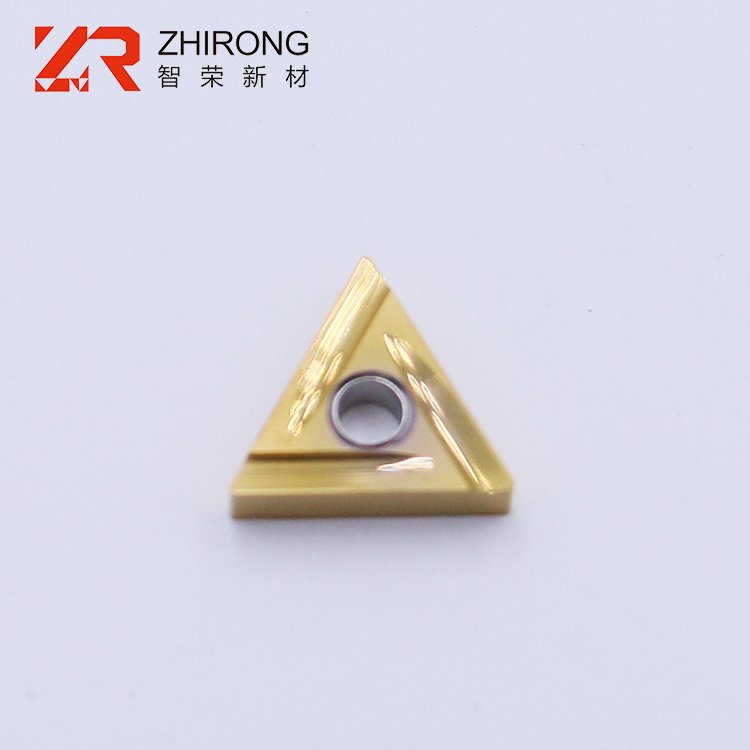

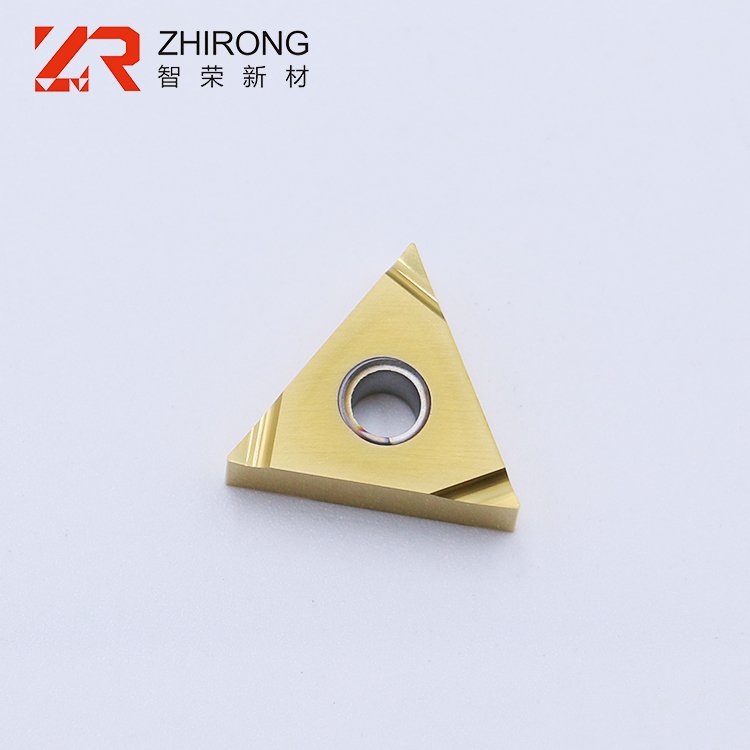

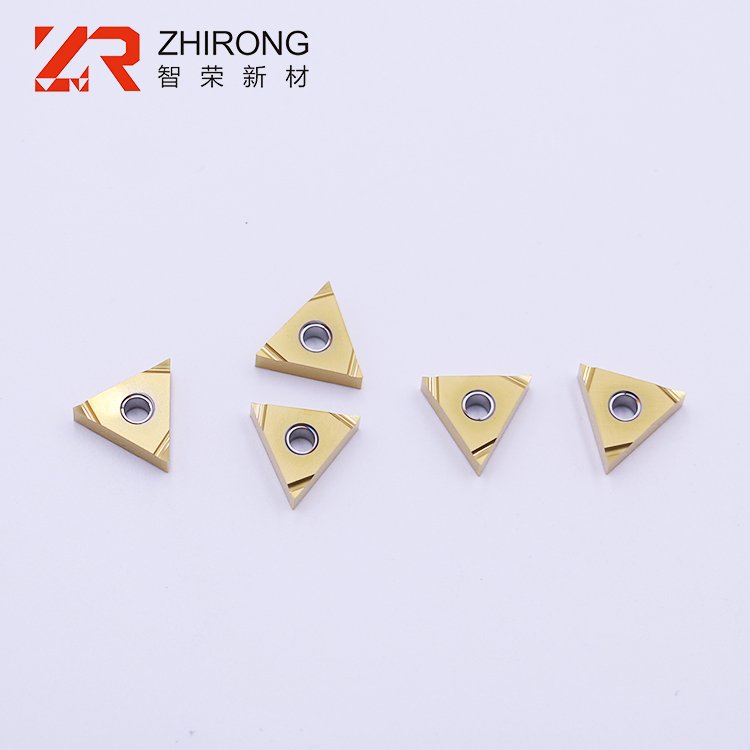

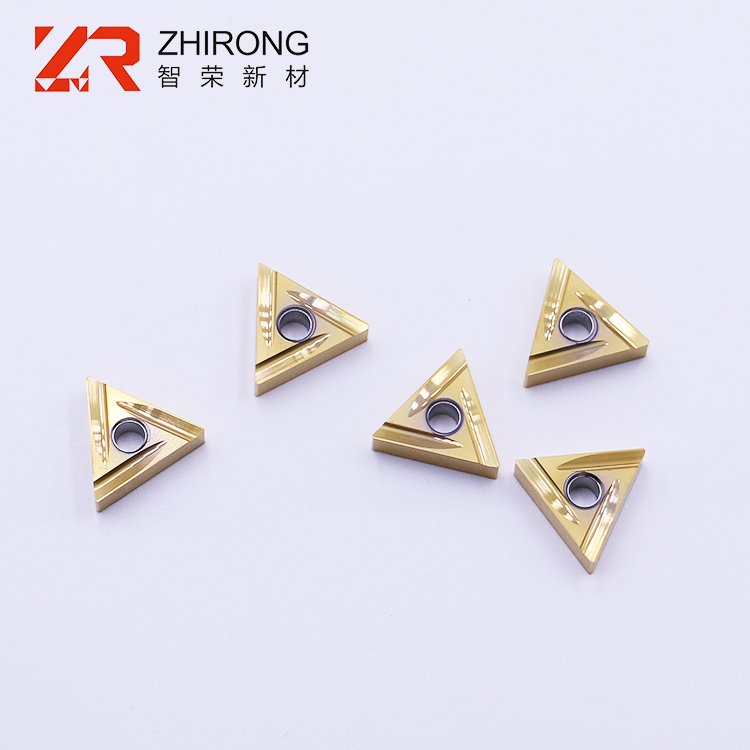

TNMG cermet inserts are ideal for steel semi-finishing and finishing, offering high wear resistance, excellent surface finish, and stable tool life. Their negative triangular design provides economical multi-edge use, making them a cost-effective solution for precision turning under stable cutting conditions.
Coated
Turning Inserts
Turning Inserts
TNMG
Insert Type
TNMG160404-MT
Grade
ZR90
Application
Steel
Coating
Yes
Cermet Insert
Steel Turning
ISO Standard
High Wear Resistance
ISO9001
Certified
No MOQ
Sample Friendly
OEM/ODM
Custom Support
Technical Data
RECOMMENDED CUTTING PARAMETERS
The following parameters are recommended for optimal machining performance. Adjust based on machine rigidity, workpiece material condition, and specific application requirements.
| Material Type | Feed Rate (mm/rev) | Cutting Depth (mm) | Cutting Speed (m/min) |
|---|---|---|---|
| TNMG160404-MT | 0.17-0.35 | 1.3-3.0 | 220 |
| TNMG160408-MT | 0.17-0.35 | 1.2-3.5 | 220 |
| TNMG160404-R-VF | 0.1-0.3 | 0.7-3.0 | 220 |
| TNMG160404 R-S | 0.15-0.3 | 1.0-3.0 | 220 |
| TNMG160404 L-S | 0.15-0.3 | 0.8-3.0 | 310 |
| TNMG160404 TC | 0.15-0.4 | 1.5-3.5 | 140 |
* Parameters are provided as reference values. Actual performance may vary depending on machine condition, workpiece material hardness, and coolant usage.
Product Details
PRODUCT DESCRIPTION
APPLICATION GUIDE
Optimized for steel semi-finishing and finishing operations
Excellent surface finish with minimal built-up edge
Suitable for CNC lathes with stable clamping
Best for continuous or light interrupted cutting
High-speed machining capability
SUITABLE WORKPIECES
Shafts
Sleeves
Valve Components
Hydraulic Parts
Pump Components
Automotive Parts
NEED TECHNICAL SUPPORT?
Our engineers can help you select the right grade and cutting parameters for your specific application.
ASK AN ENGINEERMaterial Advantage
WHY CHOOSE CERMET INSERTS
Superior Surface Finish
Achieves finer Ra values compared to standard carbide in finishing operations.
Less Built-Up Edge
Low affinity with steel reduces BUE, maintaining consistent dimensional accuracy.
Longer Tool Life
High wear resistance extends tool life in continuous steel turning applications.
Lower Cost Per Part
Reduced insert changes and rework translate to better overall production economics.
